Suburban Industrial Works Pvt. Ltd.

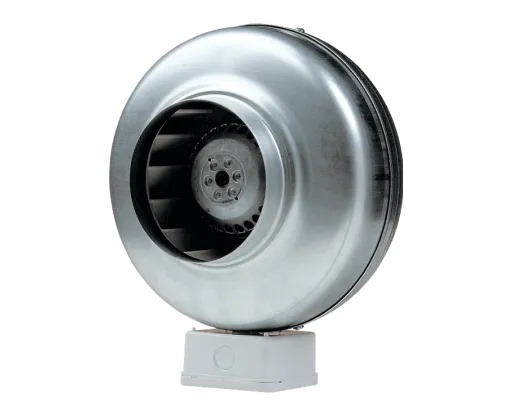

DIF Series – Circular Inline Fans
These centrifugal inline fans are suitable for ventilating in applications such as airports, hospitals, malls, theatres, hotels, toilets, cafeterias, offices, auditoriums, super markets etc. Our fans are compact when compared to their high air capacity, & are easy to install. They are also light, low in noise, low vibration, high in efficiency, & safe in operation.
- Airtight, seamed casing made from galvanised sheet steel having round duct connections ranging from 100 mm to 315 mm diameter
- High quality external rotor motor with thermal contacts and IP-44 enclosure with class F insulation. Connector box is made from fire rated grade material
- Optional speed control regulator can be supplied
- Galvanized steel metal bracket is provided for installation

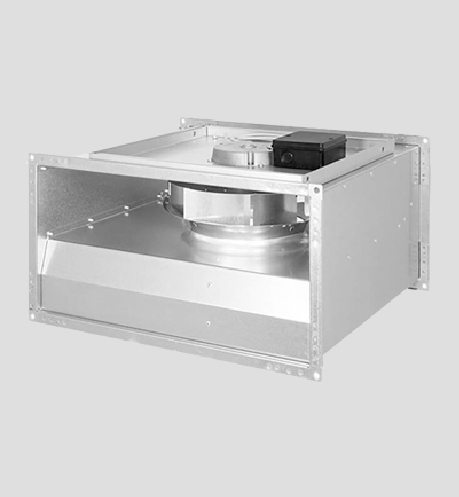

DRB Series – Rectangular Inline Fans
These fans may be used for intake or exhaust ventilation applications where noise levels are the primary selection criteria or where restricted space is available for fan mounting. It is ideal for applications where fan is required directly overhead the occupied space. Application is similar to circular inline fans.
- Casing is made from galvanized sheet steel
- Connector box is made from fire rated grade material
- High quality external rotor motor with thermal contacts and IP-44 enclosure with class F insulation
- Optional speed control regulator can be supplied
