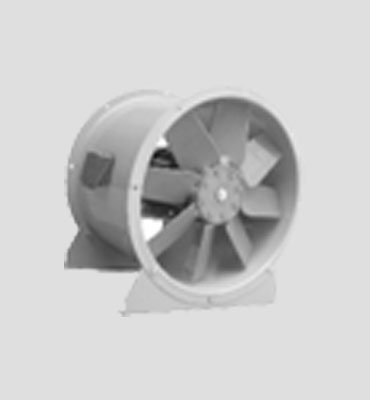

Tube Axial Fan

Most often used in HVAC Duct Systems. Ideal for installation in exhaust air & supply air systems. Available in Vane Axial & Smoke Spill Fire Rated variety also.

• Wheel Diameter: 300 mm – 2000 mm
• Performance: 1250 CMH – 2,80,000 CMH, Up to 80 mm WG SP
• Mounting: Duct/ Floor/ Wall

RE – Roof Extractor/ Ventilator Fan

Ideal for clean air, low velocity application in both supply & exhaust systems.

• Wheel Diameter: 300 mm – 1600 mm
• Performance: 1250 CMH – 1,62,000 CMH, Up to 30 mm WG SP
• Mounting: Flat/ Sloping Roofs

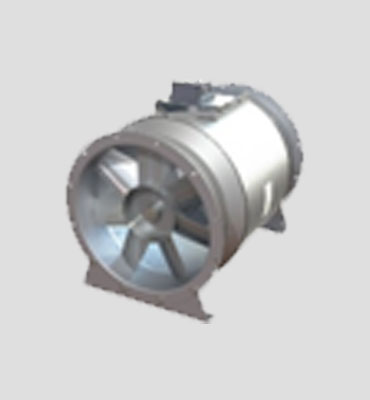

BF - Bifurcated Axial Flow Fan

Suitable for handling hot explosive, corrosive, & inflammable gases. Motor is enclosed to prevent direct contact with air.

• Wheel Diameter: 500 mm – 1000 mm
• Performance: 1250 CMH – 73,000 CMH, Up to 40 mm WG SP
• Mounting: Inline duct/ Wall

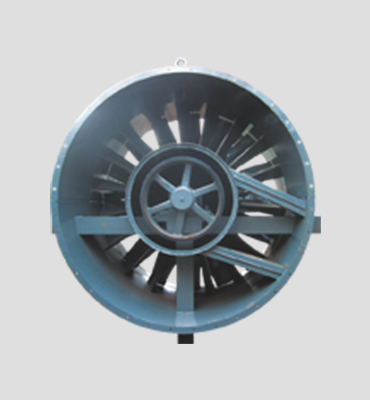

APG – Vane Axial Flow Fan

Suitable for handling large volumes of air at comparatively higher pressure. Fans are provided with outlet guide vanes, & optional inlet guide vanes. Suitable for mine ventilation & cooling applications for industrial processes.

• Wheel Diameter: 254 mm – 3000 mm
• Performance: 1500 CMH – 8,50,000 CMH, Up to 150 mm WG SP in Single Stage, & 300 mm WG SP in Double Stage
• Mounting: Floor

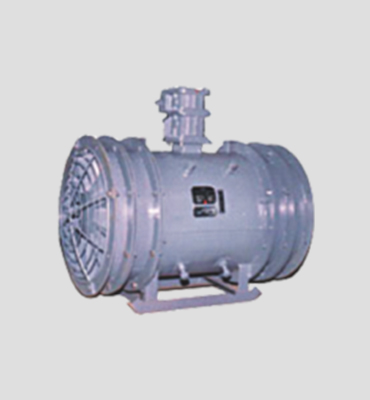

AMV – Auxiliary Mine Ventilation Fan

These are double stage axial flow fans fitted with DGMS flame proof motors. Extensively used in underground mining where inflammable & hazardous gas is present.

• Wheel Diameter: 510 mm
• Performance: 18,000 CMH – 22,000 CMH, At 250-260 mm WG SP
• Mounting: Floor/ Wall Bracket

Propeller Fans

Extensively used in all types of residential, commercial, & industrial applications.

• Wheel Diameter: 230 mm – 900 mm
• Performance: Up to 28,000 CMH, & 56 mm WG SP
• Mounting: Wall bracket
