Suburban Industrial Works Pvt. Ltd.

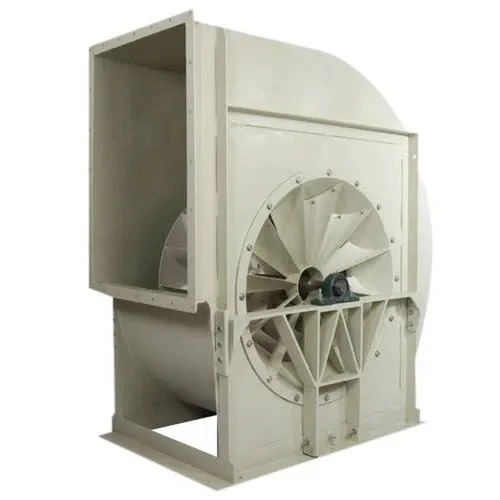

SI, DI Series – Limit Load Type
Extensively used in HVAC Systems and General Ventilation for handling of clean air or handling air with light concentration of fine particles.
- Wheel Diameter: 305 mm – 2762 mm
- Performance: Up to 8,70,000 CMH and 355 mm WG SP
- Design Feature: Available in Double width and single width with non-overloading characteristic backward curved impeller. The inlet vane and inlet cone are attached for pre rotation of inlet air

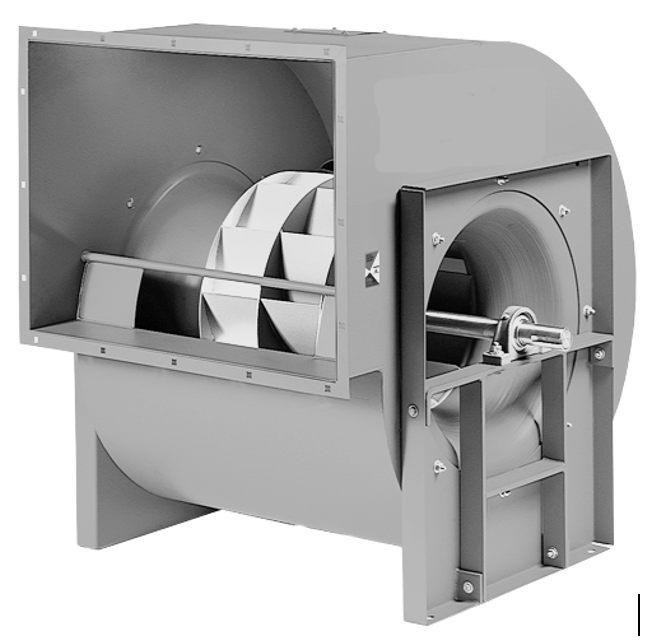

BI, BC, & AF Series
Extensively used in HVAC Systems and General Ventilation for handling of air containing small and medium sized contaminants/ erosive particles, and humid or high temperature air. Available in Single Inlet Single Width (SISW) and Double Inlet Double Width (DIDW) arrangements
- Wheel Diameter: 311 mm – 2260 mm
- Performance: Up to 8,50,000 CMH and 355 mm WG SP
- Design Feature: Available in Backward inclined, backward curved, & Aerofoil designs

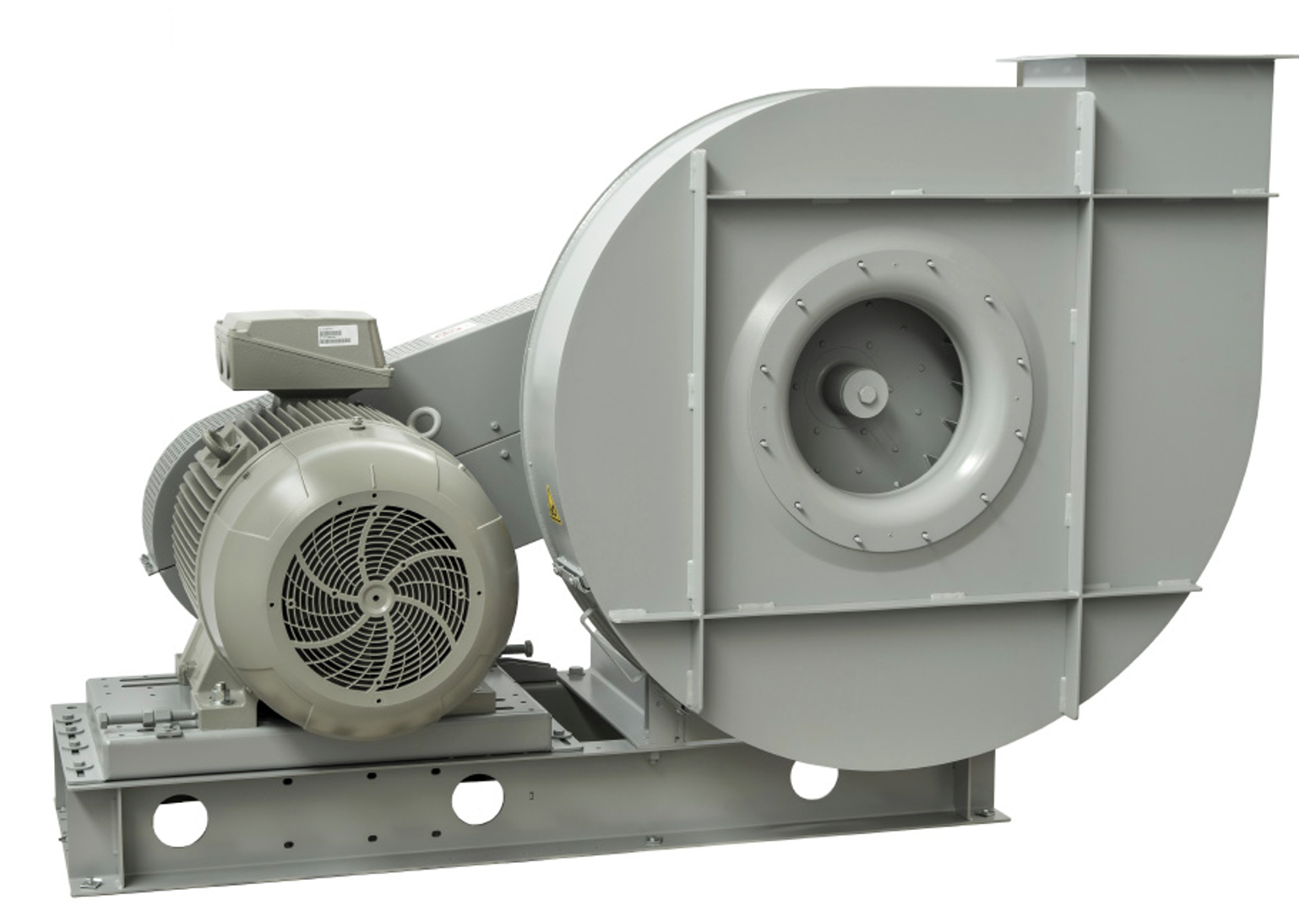

Induced Draft (ID)/ Forced Draft (FD) Fans
These high efficiency industrial fans have multiple applications ranging from dust extraction, cooling and ventilation, fume exhaust, to process powering
- Wheel Diameter: 400 mm - 2500 mm
- Performance: Up To 1,50,000 CMH and FTP 1200 mm WG
- Design Feature: Available in SI and DI with scroll casing and impeller, and overhung or between bearing arrangement. The complete fan assembly stands on a base frame
What makes SARALA Centrifugal Fans Unique?
